BMW Charging Fault
“I’m afraid to tell you that the electrical machine electronics (EME) unit isn’t working. The only option is a replacement, and with parts and labour, the bill will exceed £9,500.”
That was the diagnosis delivered to Mr C, a local BMW 5 Series Plug-In Hybrid driver, by their dealership. It’s the kind of statement that can stop you in your tracks — especially when the car is already suffering from multiple issues.
With no heating or air conditioning and the charging system completely shut down, the BMW was close to being unusable. Faced with such an overwhelming estimate, Mr C refused to settle for the dealer’s word alone.
Instead, he turned to South Coast Garage in Eastbourne, trusted specialists serving drivers across East Sussex. For our team, this wasn’t a dead end, but an opportunity to prove ourselves and uncover the real cause, delivering a lasting solution.
Read on to find out how our BMW experts traced the fault, carried out an expert repair, and brought the car back to life without the unnecessary expense of dealer replacement.
Our First Look at the BMW Charging Fault in Detail
Our investigation began with a conversation with Mr C, allowing us to build a complete picture of the situation before any tools were connected. We discussed when the issues first appeared, how they had developed, and what advice the dealership had already given. That background information guided the direction of our diagnostic work from the outset.
Once we understood the story, we connected our diagnostic equipment to the BMW and accessed the fault memory. Several codes were stored, including:
- 21E720 – Charging electronics fault: The high-voltage connection to the electrical machine electronics (EME) unit was shown as missing, meaning the vehicle could not charge.
- 80120E – A/C compressor undervoltage/overvoltage: The AC compressor had been shutting down due to voltage levels outside the permitted range.
- 8011C4 – A/C compressor voltage sensor fault: The sensor within the air conditioning compressor was sending out incorrect readings.
- 030ECD / 030EC1 – Charging management faults: The control system was unable to regulate the charging process correctly.
Together, these codes suggested a common link. The heating system, the A/C compressor, and the charging electronics, all of which relied on the EME unit to function, were not working.
Where the dealership had stopped at condemning the EME altogether, we used this information as our starting point. It gave us a clear direction on where to dig deeper.
How We Identified the Real Issue Behind the BMW Charging Fault
Using wiring diagrams
Once we recognised that the same issues were affecting several high-voltage systems, the logical next step was to trace their connection. The A/C compressor, heater, and charging system all relied on the same high-voltage circuit managed by the electrical machine electronics (EME) unit. To understand exactly how power should be distributed, our technicians referred to BMW’s genuine wiring diagrams, the reference for every circuit and connection point within the system.
Checking the evidence
By analysing the serial data, we could see that the A/C compressor wasn’t receiving voltage. That told us the compressor itself wasn’t faulty; the problem lay further upstream. The wiring diagrams showed that the same power feed supplied the PTC heater and the charging electronics, and all three were protected by a single fuse inside the EME unit.
Applying our own test plans
We then applied the in-house high-voltage test plans we use here at South Coast Garage. These test plans have been developed specifically for complex hybrid and electric systems and enable our team to assess individual components under controlled conditions. Because work of this kind involves potentially dangerous voltages, only technicians with the relevant qualifications are permitted to carry it out — and our specialists meet that standard.
Digging into the EME

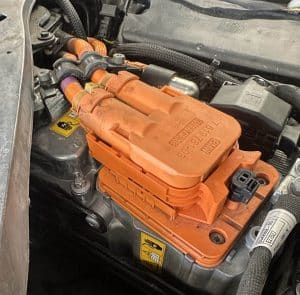

Rather than take the dealership’s approach and replace the complete unit, we stripped the EME down and carried out component-level testing. Inside, we found that the internal high-voltage fuse had blown. A fuse failure like this is not random; it’s a protective reaction to an excess current elsewhere in the system.
Isolating the culprit
To locate the cause, each component on that high-voltage circuit was tested individually — including the A/C compressor, charging electronics, high-voltage wiring harnesses, and PTC heater. The PTC heater immediately stood out, showing a much lower resistance value than expected. Using Ohm’s Law, we confirmed it was drawing excessive current and was responsible for the blown fuse.
This thorough, structured approach allowed us to find the true cause of the BMW charging fault. Instead of replacing costly components unnecessarily, we identified exactly what needed to be repaired — a result that delivered accuracy, safety, and significant savings for Mr C.
The High-Voltage Repair That Brought Every System Back
Once the underlying cause was confirmed, we turned our attention to completing the repair. Every step was planned and carried out with the accuracy required for high-voltage vehicle systems.
The work included:
- Replacing the high-voltage fuse inside the EME unit:
The internal fuse within the electrical machine electronics (EME) unit isn’t available separately from BMW, so we sourced a correctly rated replacement from a trusted specialist. The new fuse was installed with precision, and the EME unit was rebuilt according to manufacturer standards. - Fitting a new PTC heater:
The faulty heater responsible for the overcurrent was removed and replaced with a high-quality component that matched the vehicle’s design specification. This ensured safe and stable performance across the high-voltage circuit. - Final testing and verification:
Once reassembled, the complete system was tested using our high-voltage insulation tester and multimeter to verify that voltage distribution had returned to normal. Heating and air conditioning resumed full operation, and the car once again charged successfully from the mains.
Each stage was completed under strict safety conditions by our qualified technicians. The result was a fully functional BMW, its major systems restored and its owner relieved — all achieved without the unnecessary expense of replacing the entire EME unit.
From Diagnosis to Delivery: A BMW Back at Its Best
Once the repairs were completed, Mr C’s BMW was returned to the standard it was designed for. The high-voltage systems that had failed — including the heater, A/C compressor, and charging function — were now fully operational. Charging from the mains resumed exactly as intended, and every system test confirmed that performance and safety were fully restored.
For Mr C, the turnaround couldn’t have been more welcome. The dealership had advised replacing the entire electrical machine electronics (EME) unit at a cost of more than £9,500, but our targeted repair proved that it wasn’t necessary. Instead, a methodical diagnosis and careful component repair restored the BMW to complete working order.
This result captures what South Coast Garage is all about: using specialist knowledge, the right equipment, and a precise approach to deliver dealership-level quality without the dealership cost.
In the end, Mr C drove away in a BMW that was back to its best — confident, reliable, and performing exactly as it should, all thanks to the expertise of an independent garage that knows how to get to the true source of a problem.
