Diesel Fuel Filter
Could such a small part really mean the difference between dependable driving and expensive faults?
The diesel fuel filter is there to protect your vehicle’s diesel fuel system from harmful particles and water by stopping them reaching critical components such as the injectors and high-pressure fuel pump.
Skipping replacement, can quickly lead to breakdowns and repair bills you’d rather avoid.
In this guide, we’ll explain where the filter sits, what it does, the issues caused when servicing is overlooked, and why timely replacement is essential.
Are you wondering if your diesel fuel filter is due for a service?
Call South Coast Garage, Eastbourne, today at 01323 734473 to book your appointment.
Where is the diesel fuel filter found?

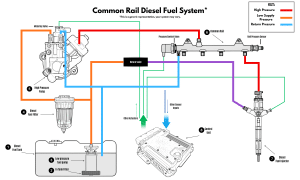

The diesel fuel filter (part 4 in the diagram) is located on the low-pressure side of the system, between the fuel tank and the high-pressure pump.
On most modern vehicles, it’s fitted in the engine bay for ease of servicing.
In addition, many designs use a coarse strainer inside the tank (part 2) to capture larger debris before it gets to the filter.
Check out our Diesel Fuel System Guide for the bigger picture of how all components work together.
The job of a diesel fuel filter
The diesel fuel filter plays a vital role in keeping your system clean and protected. It does this in two key ways:
- Blocking particles: Your diesel fuel filter captures fine contaminants in the diesel before they can enter further into the system, such as the high-pressure pump or injectors. Without this protection, blockages, wear, and premature failures can occur.
- Separating water: Diesel naturally contains traces of water. The diesel fuel filter removes this before it moves through the system, preventing corrosion and protecting against costly damage.
This small filter is one of the most important defences for your diesel engine. Call South Coast Garage, Eastbourne, today to keep your vehicle at its best to book your service.
Construction and design of diesel fuel filters
Most modern diesel vehicles use a fine diesel fuel filter module (part 4 in the diagram), though the design depends on the car. The main types are:

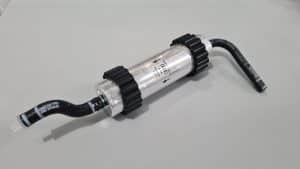

- Sealed filter units: These combine the housing and filter media in one sealed canister. The whole unit is replaced together. This style is typically seen in older or heavy-duty systems and may feature drain bowls or water separation.

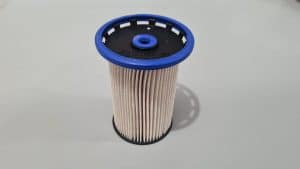

- Cartridge modules: The most common today. A fixed housing made of plastic or aluminium contains a pleated, multi-layer element that removes dirt and water. These housings can also include sensors, valves, or a hand primer. At each service, only the filter element inside is changed.
Many modern diesel fuel systems also include a coarse strainer inside the tank (part 2 in the diagram), which traps larger debris before it reaches the filter.
Keeping up with your diesel fuel filter replacement helps protect your engine.
Book your diesel car service today with our experts at South Coast Garage, Eastbourne. Call 01323 734473 today.
Common diesel fuel filter faults
If your diesel fuel filter begins to develop a problem, you may notice some fo the following:
- Clogged strainer: A blocked in-tank strainer forces the lift pump to work harder, often making it noisy and causing uneven fuel supply.
- Restricted diesel filter element: A clogged diesel fuel filter restricts the flow of diesel to the high-pressure pump, leading to poor performance, extended cranking, or no-start conditions.
- Water contamination: If water isn’t separated from the diesel, it can corrode your car’s injectors and damage the high-pressure pump, resulting in costly repairs.
- Air leaks: Poor installation or damaged seals let air into the low-pressure system, causing hesitation, stalling, or extended starting.
- Incorrect filter fitment: Using the wrong diesel fuel filter or sealing it incorrectly risks leaks, air entry, or fuel bypass.
Having a diesel fuel filter replacement is an important part of preventative maintenance. If you skip it, it can leave your vehicle running sub-optimally or worse… With a costly repair bill.
If you’re unsure if your vehicle needs a service, it’s best to speak to an expert.
When to replace your diesel fuel filter
There isn’t a set mileage that applies to every car. The right interval depends on the manufacturer’s servicing schedule, which should always be followed.
Things to keep in mind:
- Correct filter design: Fit the right type and quality. Inferior diesel fuel filters can restrict fuel flow, leak, or fail to remove water properly.
- Priming is essential: After fitting a new diesel fuel filter, the system must be primed correctly with the pumps or a hand primer. If missed, trapped air can cause starting issues or pump damage.
- Water checks: Filters with drains or sensors should be checked at service and drained if necessary.
- Efficiency drop: During ISO testing, it was shown that new filters separate more than 95% of water, but this falls to about 70% near the end of their life.
Sticking to the servicing schedule helps protect your system. Book your diesel filter replacement today with South Coast Garage, Eastbourne on 01323 734473.
Protecting your diesel system
Timely diesel fuel filter replacement plays a crucial role in keeping your vehicle reliable. By following the manufacturer’s servicing schedule, you reduce the likelihood of fuel system problems and help your diesel run at its best.
Taking action early also helps you avoid costly breakdowns later.
And when it comes to looking after your car, local drivers rely on South Coast Garage, Eastbourne.
Why drivers choose South Coast Garage
Motorists across Eastbourne, Brighton, East Sussex and the nearby areas trust us because we provide:
- Technicians with expertise in diesel systems.
- A 12-month parts and labour guarantee.
- Courtesy cars available while your vehicle is serviced.
We’re proud of our {{average-rating}}⭐ Google rating from {{review-count}} customers across East Sussex.
Keep your vehicle’s diesel fuel system in excellent condition; book your diesel car service with South Coast Garage, Eastbourne. Call us today on 01323 734473.
Common diesel filter questions
- What does a diesel fuel filter do?
Your vehicle’s diesel fuel filter acts as a barrier, capturing dirt and separating water before they can damage critical fuel system parts like the injectors or the high-pressure pump. Without this protection, your diesel fuel system risks corrosion, blockages, major failures and expensive repair bills. - Where is the diesel fuel filter located?
Typically, your diesel fuel filter is positioned in the low-pressure line between the fuel tank and the high-pressure pump. In most modern vehicles, it’s fitted in the engine bay. Many systems also include a coarse strainer inside the tank. - Can a clogged diesel fuel filter damage the high-pressure fuel pump?
Yes. A blockage in your diesel fuel filter forces the high-pressure fuel pump to strain harder, increasing wear and risk of failure. A new diesel fuel filter costs far less than replacing a damaged high-pressure fuel pump. - What are the symptoms of a blocked diesel filter?
Symptoms include hesitation when accelerating, reduced power, difficulty starting, stalling, or even total no-start. Because these issues can overlap with other problems, professional diagnosis is recommended. - How often should the diesel fuel filter be replaced?
There isn’t a universal Interval for a diesel fuel filter replacement, it’ll differ by manufacturer. Always follow the servicing guidance in your vehicle’s handbook to keep your vehicle in top condition.
