Land Rover DPF Fault

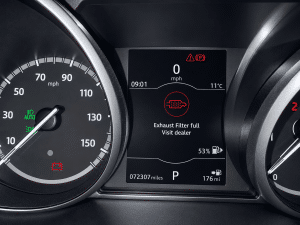

There had been no signs of trouble at all. Then, during a perfectly normal drive, Mr T’s 2017 Land Rover Discovery Sport filled the dashboard with warning lights, lost power almost entirely, and dropped into limp mode.
For any driver, that kind of change is deeply unsettling. Was it safe to carry on? What had caused the warning lights to appear? And was this going to lead to further damage?
Mr T, from Hailsham, contacted South Coast Garage, Eastbourne, looking for answers. The blocked DPF symptoms affecting his Discovery Sport were clearly pointing to a fault that needed to be properly investigated and resolved.
He needed a team with the right technical expertise and a methodical approach to find the cause and carry out the correct repair.

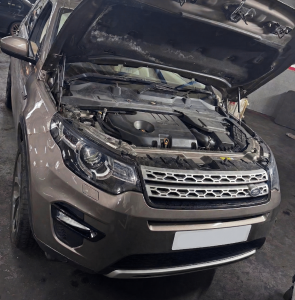

Mr T booked the Discovery Sport in with South Coast Garage for a full technical evaluation.
Reviewing the Blocked DPF Symptoms and the Driver’s Experience
With the Discovery Sport now at South Coast Garage, Eastbourne, the first step was to listen to Mr T and understand exactly what had taken place. We asked when the warning lights had first appeared, how the vehicle had been behaving since that point, and whether there had been any changes to his usual driving routine.
Short, stop-start journeys are among the most widely recognised contributors to DPF problems, as they prevent the engine from reaching and maintaining the sustained temperatures that regeneration requires. Getting a clear understanding of Mr T’s typical driving pattern was an important part of the picture before any hands-on work began.
With that background established, our technicians connected the vehicle to our dealer-level diagnostic equipment and carried out a full system scan. Two of the stored fault codes were directly linked to the DPF concern:
- Land Rover P2463 fault code — P2463-00, indicating the engine management system had recorded excessive soot loading or restriction in the diesel particulate filter.
- Land Rover P246B fault code — P246B-00, indicating the conditions needed for regeneration were not being consistently achieved, or that the regeneration process was being interrupted before it could finish.
Both codes were consistent with DPF issues, but fault codes on their own only provided part of the picture. To determine what had caused the DPF warning and associated codes, and to make certain the correct repair was carried out, a deeper inspection was needed.
Our technicians moved into a structured, step-by-step investigation to identify the root cause.
What Was Behind the Land Rover DPF Fault?
The stored fault codes confirmed excessive soot loading in the DPF and that regeneration was not completing successfully. But before any repair could take place, our technicians needed to understand what had allowed the filter to reach that condition. A Land Rover DPF fault can develop for a number of different reasons, and the right approach to fixing it depends entirely on what is driving the problem. Each area of concern was investigated methodically, ruling out one possibility at a time.
Step 1: External DPF Inspection
Before examining what had caused soot to accumulate, our technicians first checked whether the DPF itself was still in a recoverable condition. A cracked or damaged filter substrate would change the repair plan entirely, potentially requiring a full replacement rather than cleaning.
- The DPF housing and accessible components were inspected and showed no signs of external damage or failure.
- This indicated the filter was likely suitable for cleaning rather than replacement.
Step 2: Oil Level, Condition, and Oil Dilution Inspection
Our technicians examined the engine oil level and condition closely, with particular attention to whether oil dilution was present. Oil dilution develops when unburnt fuel passes the piston rings and enters the engine’s oil supply. This is commonly associated with DPF regeneration attempts that fail to complete. During a regeneration attempt, the engine management system introduces additional fuel through late post-injection to raise exhaust gas temperatures. If regeneration does not finish, some of that fuel can wash past the piston rings rather than being burnt off.
- Oil dilution was identified on Mr T’s Discovery Sport.
- Diluted oil degrades over time and can affect overall engine condition, while the ongoing failure to regenerate meant soot continued to build in the DPF with no way for the system to clear it.
With that established, our technicians continued the inspection to determine whether additional factors were involved.
Step 3: Air Filter Condition Check
The air filter was assessed next. A restricted air filter reduces airflow into the engine, which can lower combustion efficiency and increase particulate production. Over time, this places greater demand on the DPF.
- The air filter was found to be in acceptable condition and was not a contributing factor.
Step 4: DPF Pressure Readings
Our technicians measured the differential pressure across the DPF using the dealer-level diagnostic equipment. High readings would confirm the filter was carrying a significant soot load.
- The pressure readings were elevated, aligning directly with the Land Rover P2463 fault code stored during the initial scan.
Step 5: Boost Leak Assessment
The intake and boost system was checked for leaks. A boost leak can reduce combustion efficiency and speed up the rate at which soot accumulates in the DPF.
- No boost leaks were found.
With every check complete, the picture was clear. The DPF had been unable to regenerate, causing soot to build up progressively. The oil dilution identified during the inspection was consistent with repeated failed regeneration attempts. No sensor faults or hardware failures were identified that would prevent regeneration, indicating the issue was most likely related to driving conditions and interrupted regeneration cycles. That accumulation had eventually reached the point where the DPF warning light on the dashboard was triggered, the vehicle entered limp mode, and power was significantly reduced.
Addressing the Land Rover DPF Fault with the Correct Repair
With the root cause confirmed, our technicians contacted Mr T to walk him through the findings and outline the proposed repair. Once he was satisfied with the plan, the work began.
Engine oil and filter change
The engine oil had become fuel-diluted as a consequence of repeated failed regeneration attempts and was no longer offering adequate protection.
- Our technicians carried out an engine oil and filter change, draining the contaminated oil and replacing it with the correct Land Rover-specified oil for the Discovery Sport’s Ingenium diesel engine, in line with manufacturer standards.
Diesel particulate filter cleaning
With fresh oil in the engine, attention turned to the DPF. The filter had been assessed as structurally sound, so diesel particulate filter cleaning was carried out to reduce the soot load and restore flow through the filter before regeneration.
Service regeneration and system reset
Once cleaned, a service regeneration was initiated using the manufacturer-level software. On the Discovery Sport’s Ingenium engine, a static regeneration requires tool support to complete.
- Following regeneration, the relevant DPF adaptation and soot loading values were reset in accordance with manufacturer procedures, ensuring the engine management system could monitor the filter accurately from a clean starting point.
- The fault memory was cleared and the system retested. No new fault codes were returned.
Customer guidance
On the Ingenium diesel engine, frequent short journeys can prevent DPF regeneration from completing. When regeneration is interrupted, fuel introduced through late post-injection, intended to raise exhaust temperatures for regeneration, can wash past the piston rings. Over time, this leads to oil dilution.
- Our technicians explained this to Mr T and outlined the driving habits that would support the DPF regenerating correctly going forward.
Mr T’s DPF Regeneration Issues: The Outcome
Mr T’s 2017 Land Rover Discovery Sport left South Coast Garage, Eastbourne, with full power restored, all warning lights cleared, and the vehicle running smoothly with no sign of limp mode. The blocked DPF symptoms that had brought the vehicle in were fully resolved.
The repair worked because it addressed the root cause rather than just the visible symptom. By replacing the diluted oil to protect the engine, then reducing the soot load and carrying out a controlled regeneration, our technicians restored the system to correct operation and dealt with every factor that had contributed to the fault.
Mr T also came away with a clear understanding of how his Discovery Sport’s DPF system works, why his driving pattern had contributed to the problem, and how to avoid DPF regeneration issues going forward. That awareness carries real value; a driver who understands the system is far less likely to encounter the same fault again.
For Mr T, the result was a first-time resolution, completed at a more competitive cost than a main dealer, with clear and open communication from beginning to end.
